| SeaBoats | |
| P.O. Box 6261 , North Sydney, NSW, 2059, Australia | |
| Contact: | Geoff Fraser |
| Telephone: | Reveal Telephone Number |
| Website: | Visit Company Website |
| View All SeaBoats Listings | |
| $3,075,000 | | |
| Status: | Available |
| Location: |
Australia [View Map] |
| Reference: | 2231 |
| Website: | Open website in new window |
Description
Port of registry: Gladstone, Queensland. The vessel is flagged under Vanuatu and with BV class Dead weight: 1304. Loaded displacement: 2092. Lightship: 787. Gross tons: 1120. Max Complement: 8 people. Dead weight: 1320.1t. GRT / NRT: 1097 / 336t. Fresh water: 81.90m³. Fuel oil: 444.87m³. Cargo fuel oil: 248.36m³. Cargo fuel discharge rate: 20m³ @ 25m head. Sea water ballast: 1086m³. Freshwater/s/water cargo: 850m³. Cargo F/WS/W discharge rate: 2x40m³ @ 35m head. Free deck space: 617.8m². Main Deck rating: 7.5T/m². Container capacity: 70TEU. Stack weight (max): 45T. Estimated speed: 10 Knots. Consumption: 5000ltrs/day. Main propulsion system: 2x Cummins KTA19M3 @ 1800RPM with two reduction gears from Reintjes Asia Pacific. Telescopic bow thruster: 200 kW Thrustmaster Cummins QSL-9. Main generators: 2x Cummins 6CT8.3D(M), 98KWE @ 122.5KVA. Inflatable rescue boat for 6 people.
Specifications

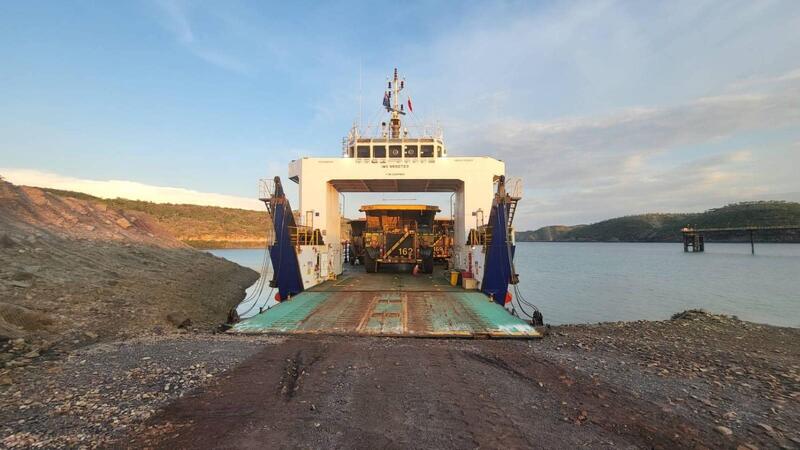

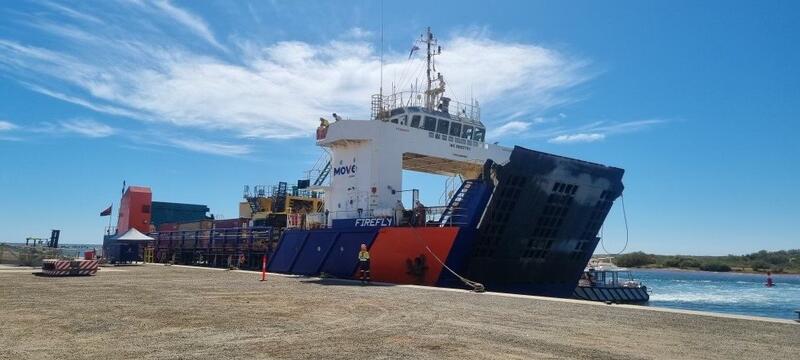

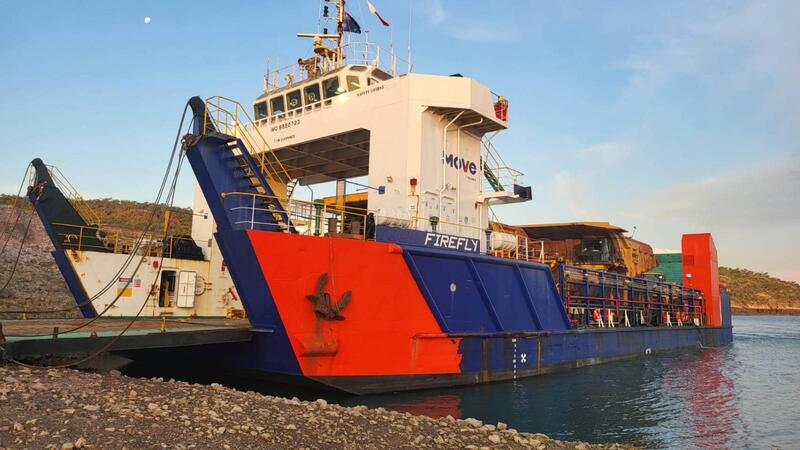

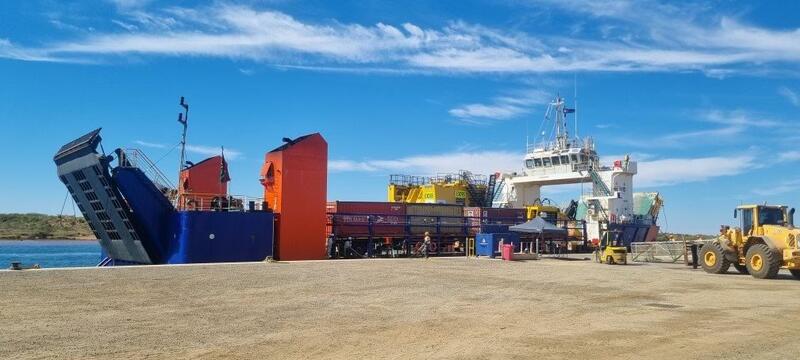

| Vessel type: | Cargo / Landing Craft |
| Constructed: | 2009 |
| Class Society: | BV |
| No. of engines: | 2 |
| Engine model: | Cummins |

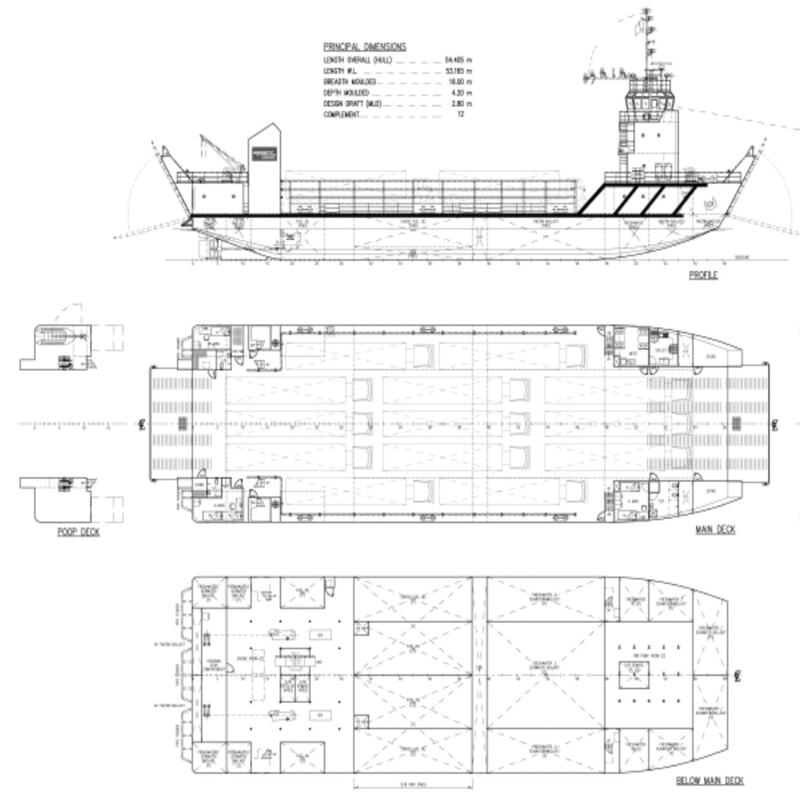

| Nominal length: | 54.37m |
| Length over all: | 54.37m |
| Beam: | 18m |
| Hull material: | Steel |
| Fuel capacity: | 444 Cubic Metres |
| Water capacity: | 81 Cubic Metres |
Accommodation
Max Complement: 8 people
Min Complement: 4 people
Current complement: 4 people
Construction
Port of registry: Gladstone, Queensland
Dead weight: 1304
Loaded displacement: 2092
Lightship: 787
Gross tons: 1120
Moulded depth: 4.2m
Dead weight: 1320.1t
GRT / NRT: 1097 / 336t
Cargo F/WS/W discharge rate: 2x40m³ @ 35m head

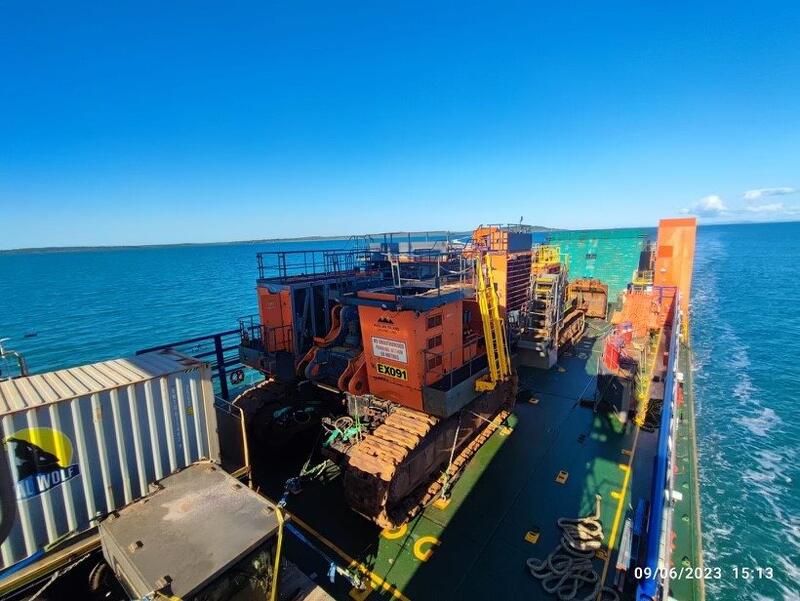

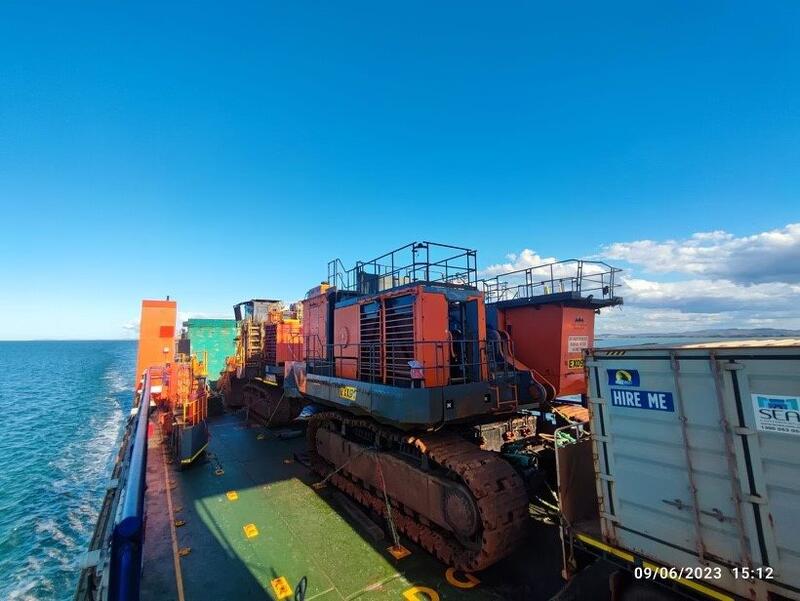

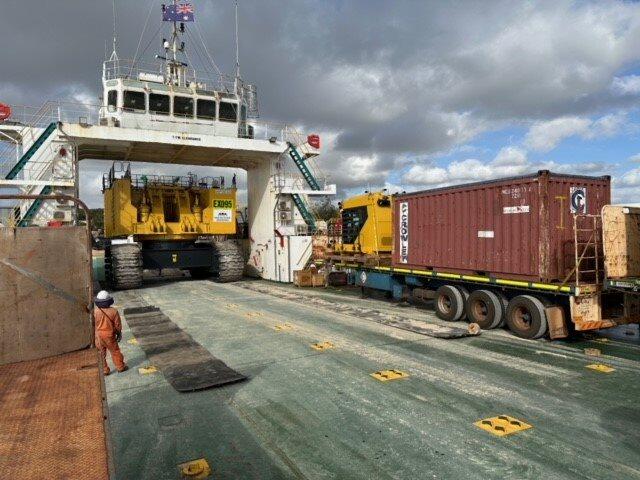

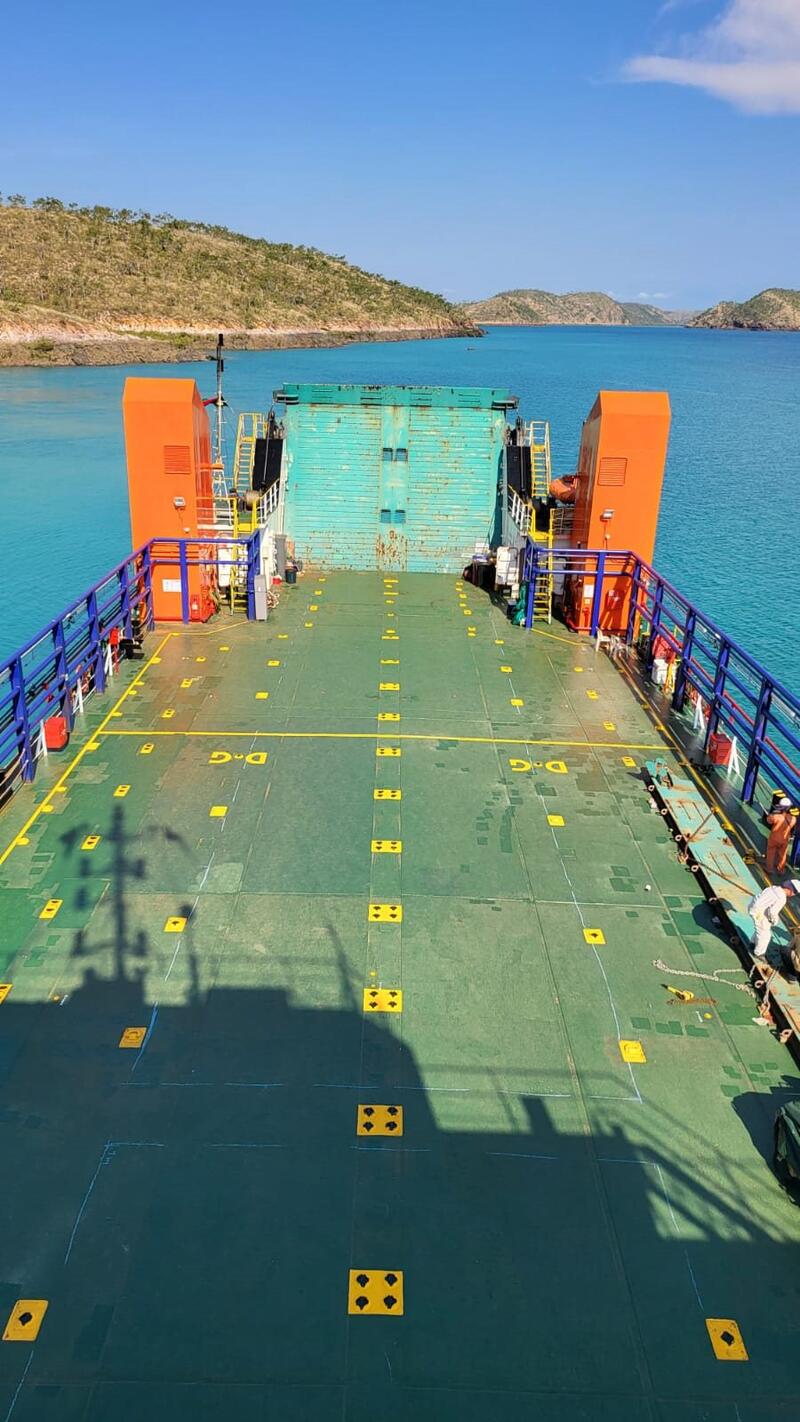

Free deck space: 617.8m²
Main Deck rating: 7.5T/m²
Container capacity: 70TEU
Stack weight (max): 45T
Engine(s)
Main propulsion system: 2x Cummins KTA19M3 @ 1800RPM with two reduction
gears from Reintjes Asia Pacific
Telescopic bow thruster: 200 kW Thrust master Cummins QSL-9
Main generators: 2x Cummins 6CT8.3D(M), 98KWE @ 122.5KVA
Cargo fuel oil: 248.36m³
Cargo fuel discharge rate: 20m³ @ 25m head
Sea water ballast: 1086m³
Freshwater/s/water cargo: 850m³
Estimated speed: 10 Knots
Consumption: 5000ltrs/day
Electronics
INMARSAT-C 2x Furuno Felcom 15
GPS Furuno: GP-150
AIS: Furuno FA-150
VHF/FM radio telephone: Furuno FS1570
VHF/FM hand held radio: 2x Furuno FM8800
Radar Furuno: FR-1510 MK3
Echo sounder: Furuno FE-700
EPIRB: Acr-Rlb-32
Gyro compass: Yokogawa CMZ700B
Magnetic compass: Lilley & Gill MK2000
Speed log: Furuno DS-80 Doppler
Safety Equipment
Rescue boat: Inflatable rescue boat for 6 people
Disclaimer
The particulars and specifications are supplied by the vendor and not SeaBoats. Such information has not been verified and may be incorrect. Please do not rely on particulars and specifications unless you have verified their accuracy.
